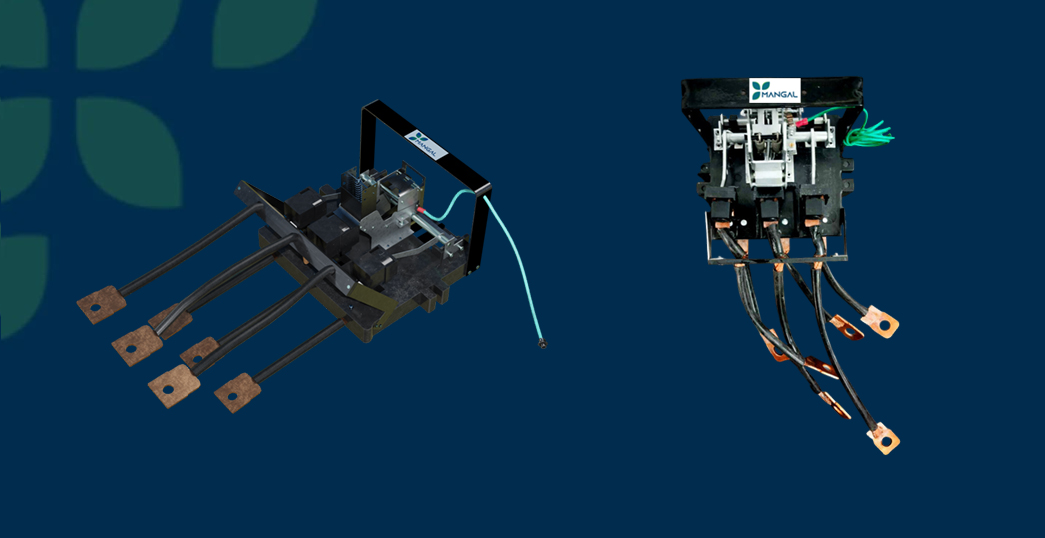

8 Safety and Performance Checks Before Installing an Oil Circuit Breaker

Electricity powers our modern industries. It drives heavy machinery, automated assembly lines and large manufacturing plants. However, keeping this immense electrical power safe and under control is a major responsibility. In heavy power networks, an oil circuit breaker plays an important role. This type of electrical circuit breaker protects machines and factories from overloads and short circuits.

Skipping vital checks before setting up this high-voltage circuit breaker equipment can lead to severe problems. It can cause expensive damage, sudden power failures or safety risks for your team. According to the Central Electricity Authority's Electrical Accident Statistics, thousands of fatal and non-fatal electrical accidents are recorded across India every year. Taking time to run through a basic checklist ensures your system stays safe. It also ensures your power circuit breaker equipment works properly for years.

Mangal Electrical Industries Limited is a trusted name in creating reliable power infrastructure parts. We design advanced equipment to keep energy systems running smoothly and without interruption. To ensure the best reliability at your site, always perform these eight essential checks before installation.

The Checklist: 8 Essential Safety and Performance Checks

Inspect the Quality and Level of the Oil

The oil inside the breaker provides thermal dissipation and dielectric strength. It works to rapidly stop electrical arcs during a power fault. Ensure the oil tank is filled precisely to the correct mark. The oil must be absolutely clear. It must be free of dirt, water or debris. Dirty or low oil cannot extinguish electrical arcs effectively. This can cause severe damage to the equipment.

Look for External Damage and Shipping Wear

Heavy industrial equipment travels a significant distance before it arrives at your site. Look closely at the outer metal shell, levers and bushings. Check for cracks, dents or scratches. Even a small crack in the outer structure can cause leaks. It can also let humid air creep inside and spoil the insulation.

Test the Smoothness of the Moving Parts

Circuit breakers need to open and close quickly during an emergency. Manually test the switches and internal levers. Make sure nothing is stuck, stiff or hard to move. Parts can become sluggish or move too slowly. If they do, the breaker will not cut off dangerous electricity in time to prevent an accident.

Run Electrical Insulation Tests (Phase-to-Phase & Phase-to-Neutral)

Electrical insulation ensures the current stays in the right path, thereby preventing electricity from leaping to unintended surfaces. Use an insulation tester to check phase-to-phase resistance. Also, test the resistance between phase-to-neutral. These tests ensure no internal short-circuits exist. Checking this before turning on the power prevents sudden equipment failure.

The Mangal Manufacturing Edge (USP): Mangal Electrical Industries Limited minimizes energy losses. We use premium Electrolytic Tough Pitch (ETP) Grade Copper for our contacts and conductors. Standard Indian Specifications require a conductivity higher than 97%. We also use copper with a purity level of Cu ≥ 99.5%. This superior material lowers internal resistance and keeps your system highly efficient.

Check the Core Components and Internal Connections

The interior parts handle the heavy electrical load. This includes the contacts, conductors and internal electrical connections. Ensure all internal wiring, bolts and connections are tight. Check that everything is securely in place. Loose connections create extra heat. This heat wastes energy and weakens the system over time.

Verify the Moisture and Weather Seals

Oil and water do not mix well. This is especially true when high-voltage electricity is involved. Check the rubber seals and gaskets around the tank lids and doors. Ensure they form a tight, complete grip. Good seals keep rain and humid air out. This protects the internal oil from contamination and reduces maintenance needs.

Confirm the Grounding Connection is Secure

Grounding provides a safe path for stray electricity. It sends dangerous fault currents into the earth rather than through a worker. Ensure the main grounding terminal is clean and unpainted. Check that it is firmly attached to your facility’s ground network. Proper grounding protects your team from accidental electric shocks during operation.

Technical Comparison: Why OICBs Excel Over MCCBs

Engineers often choose between an Oil Immersed Circuit Breaker (OICB) and a Molded Case Circuit Breaker (MCCB) for transformer protection. Field experience shows that integrating an OICB directly inside the transformer tank can provide enhanced transformer-specific protection.

Parameter	Oil Immersed Circuit Breaker (OICB)	Molded Case Circuit Breaker (MCCB)
Location	Installed inside the transformer tank.	Installed outside the transformer.
Temperature Sensing	Detects actual transformer oil temperature.	Cannot detect internal oil temperature.
Arc Quenching	Superior quenching in a liquid oil medium.	Arc interruption through internal arc chambers and air-based mechanisms.
Cooling Effect	Oil provides constant natural cooling.	No built-in cooling mechanism.
Shielding	Fully enclosed and safe from dust or moisture.	Exposed externally to weather and dirt.
System Cost	Lower cost integrated solution.	Higher cost due to external mounting hardware.

The OICB senses the true internal conditions of the transformer. It reacts quickly to protect the system from overheating. This direct response helps increase the operational life of your transformer.

Conclusion

A quick, step-by-step review before installation saves time. It prevents accidents and protects your financial investment.

Mangal Electrical Industries Limited applies strong material and manufacturing standards across its electrical equipment. The company works with premium CRGO steel, amorphous cores and high-quality transformer components to support efficient, reliable power performance. Review our core transformer comparison guide to see how this ensures energy travels with minimal waste and that protection components perform accurately.

Take control of your power security. Contact the support team at Mangal Electrical Industries Limited today. Learn more about our high-conductivity, low-loss electrical solutions for your operations.
