Understanding Different Transformer Types

TIf anything, transformers are the unsung heroes of our electrical system. Without them, the safe distribution of electricity in cities, industries and homes would be next to impossible. These workhorse devices control the voltage levels and enable us to send electricity over a vast distance and plug it into our appliances safely. In this blog, we will go through what a transformer is, how it operates and the different kinds that play different roles in the power ecosystem.

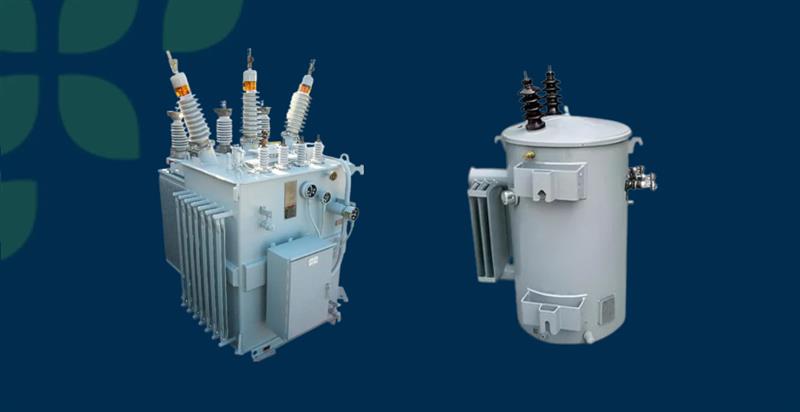

Image not Found

What is a Transformer?

It is an electrical device, and its job is to transfer energy between two or more circuits. This is done with the help of electromagnetic induction. It operates following the principle of mutual induction. The varying current in the primary coil creates a magnetic field that induces a voltage across the secondary coil. This enables electrical isolation between input and output so the transformer can step up or step down voltages.

What are the Different Types of Transformers?

Let’s now break down the transformer categories for a detailed understanding.

Transformer Types Based on Voltage Level

Transformers are mainly classified based on their function in changing the level of voltage. When designing power systems for transmission, distribution or any equipment, this classification is crucial.

Step-Up Transformer

This type of transformer increases the voltage from the primary to the secondary winding. It is primarily utilized in power stations where the voltage must be raised to efficiently transmit electricity over long distances with a relatively low level of power loss.

  • Primary Voltage < Secondary Voltage
  • Used in power stations before the transmission stage
  • Reduces current to minimize heat loss during transmission

Step-Down Transformer

This transformer reduces the voltage from primary to secondary. It’s commonly used in distribution systems to make electricity safe for home and office use.

  • Primary Voltage > Secondary Voltage
  • Found near residential areas
  • Helps operate household appliances safely

Isolation Transformer

Unlike step-up or step-down types, these maintain the same voltage level across both windings. But they isolate the electrical systems for safety and noise reduction.

  • Primary Voltage is the same as Secondary Voltage
  • Used in sensitive medical or laboratory equipment
  • Protects devices from electrical surges and interference

Transformer Types Based on Construction

How a transformer is built affects its performance and suitability for particular applications. Here are the primary types -

Core-Type Transformer

In core-type transformers, the windings are wound around two limbs of a rectangular magnetic core. This design is simpler and offers ease of insulation and cooling.

  • Two vertical limbs of the core with coils on each
  • Easier to manufacture
  • Commonly used in distribution and power transformers

Shell-Type Transformer

These transformers have windings wound on the central limb, with the core enclosing the windings. This construction provides greater mechanical strength and is used in those appliances where compact design and noise damping are desired.

  • Better short-circuit strength
  • Compact, robust design
  • Suitable for low-voltage, high-current applications

Auto Transformer

Auto transformers have a single winding that serves both as primary and secondary. A portion of the winding is shared. They are compact and cost-efficient but offer limited isolation.

  • One winding with a tapped connection
  • Smaller in size and cost
  • Used in voltage regulation and railway systems

Transformer Types Based on Core Material

The core material significantly impacts magnetic efficiency and losses. The choice of core depends on the application frequency and size requirements.

Core Material

Features

Application Example

Iron Core

High magnetic permeability

Power distribution and transmission lines

Ferrite Core

Lightweight, high-frequency

SMPS, TVs, computing devices

Amorphous Core

Low core loss, high efficiency

Energy-efficient transformers in smart grids

Air Core

No core material

High-frequency wireless applications

Iron Core Transformer

Made with laminated sheets of silicon steel, iron core transformers offer high magnetic coupling and minimal leakage.

  • Heavy and efficient
  • Common in large-scale power applications

Ferrite Core Transformer

Lightweight and suited for high-frequency uses, ferrite cores reduce eddy current losses and are widely used in electronics.

  • Made of ceramic compounds
  • Suitable for frequencies above 10 kHz

Amorphous Core Transformer

Built with a special alloy that has a non-crystalline structure, these cores minimize hysteresis loss and are perfect for energy-saving solutions.

  • Lower core loss compared to conventional cores
  • Ideal for green energy and smart grid infrastructure

Air Core Transformer

These use no magnetic material, just air. They rely solely on magnetic fields between windings.

  • Lightweight and simple
  • Found in radio frequency applications

Transformer Types Based on Cooling Methods

Transformers become hot during operation, and depending on the load and the environment, different cooling methods are employed.

Oil-Filled Transformer

Uses oil (mineral or synthetic) for insulation and as the cooling medium. The oil circulates through the tank and dissipates heat quickly

  • High cooling capacity
  • Requires maintenance (oil testing/replacement)

Dry-Type Transformer

Air is the cooling medium. These are safer for indoor applications, especially where fire risks need to be minimized.

  • Lower maintenance
  • Suitable for commercial complexes, hospitals

Gas-Filled Transformer

SF6 or other gases are used as insulating and cooling agents. They are sealed systems used in compact environments.

  • Compact, high voltage use
  • Found in substations and urban installations

Transformers Types Based on Purpose

This classification is based on the functional role the transformer plays. The variety under this category showcases just how adaptable transformers can be to serve different sectors.

Power Transformer

Used in transmission networks for high-voltage applications. They are designed for full-load efficiency

  • Rating usually above 200 MVA
  • Found in generating stations and transmission substations

Distribution Transformer

Steps down voltage for end-use in homes or commercial spaces. These operate 24/7 and are designed for low load losses.

  • Rating under 200 MVA
  • Pole-mounted or pad-mounted near residential areas

Isolation Transformer

As discussed earlier, it provides electrical isolation without voltage change. Used for sensitive instruments and safety.

Instrument Transformer

Used to measure electrical quantities and provide input to protective relays.

  • Includes Current Transformers and Potential Transformers/li>

Current Transformer

Steps down high current levels to a manageable range for metering or protection.

  • Helps monitor system health
  • Used with ammeters and protection systems

Potential Transformer

Reduces high voltage to measurable levels. Helps in the safe monitoring and measurement of voltages.

  • Often used alongside voltmeters

Furnace Transformer

Supplies power to arc furnaces and induction heating equipment. Designed to handle high current and fluctuating loads.

  • Heavy-duty applications
  • Used in the steel and aluminum industries

Control Transformer

Used in control panels for voltage regulation of control circuits.

  • Provides constant voltage regardless of load variations
  • Found in CNC machines, elevators, and lighting systems

Transformer Types Based on Number of Phases

The number of electrical phases supported by a transformer is a crucial factor in determining its application. The choice depends on the power requirement and load type.

Single-Phase Transformer

Used for light loads and domestic applications. These have two windings (primary and secondary) and are simpler in design.

  • Power rating up to a few kVA
  • Found in residential and rural power supply

Three-Phase Transformer

Supports heavy-duty loads. These either have three single-phase units connected or a single unit with all three windings inside.

  • Suitable for industrial power systems
  • Efficient for large-scale transmission ms

Comparison

Single-Phase Transformer

Three-Phase Transformer

Load Capacity

Light loads

Heavy loads

Efficiency

Lower

Higher

Cost

Cheaper

More expensive

Maintenance

Simple

More complex

Transformer Types Based on Application

Transformers are also customized for specific functions across various industries. Some designs are tailored for military-grade durability, while others serve unique electrical roles.

Rotary Transformer

Used to transfer electrical signals between rotating and stationary parts. Found in video heads, radar systems, and robotic joints.

  • No physical contact needed
  • Long life and reliable

Pulse Transformer

Transmits electrical pulses with high precision. Often used in radar and digital logic circuits

  • Fast switching
  • Isolates control and power circuits

Flyback Transformer

Found in old CRT TVs and some power supplies. Stores energy during the "on" period and releases it in a burst.

  • High voltage output
  • Compact design

Military Transformer

Built to withstand harsh environments. These are rugged and compliant with military standards for durability.

  • Resistant to temperature, shock, and vibration
  • Used in tanks, aircraft, and naval systems

Voltage Regulator Transformer

Maintains a stable output voltage despite input fluctuations. Found in stabilizers and uninterruptible power supplies (UPS).

  • Protects against voltage spikes
  • Essential for sensitive electronics

Understanding the transformer types is crucial when selecting the proper one for any application, whether it's for -

  • Power distribution
  • Control
  • Measurement, or
  • Specialty purposes

Regardless of whether you’re seeking to understand what is a transformer or you’re considering the different types of transformers for a plant, this overview should make for a convenient guide

Application of the Transformer in Different Industries

Transformers are the silent heroes of almost every electrical system. Transformers help make it possible for electrical energy to be distributed, measured, and used in our homes and factories.

Let’s take a closer look at how transformer types find purpose in various sectors through the specific application of transformer designs.

Power Industry

Transformers are used widely throughout the power industry as a means of transmitting and distributing electricity over long distances. A wide variety of transformers are employed by this industry, from step-up transformers at power plants to distribution transformers located at the consumer end.

Key Roles in the Power Industry:

  • Step-Up Transformers: Are placed at generation stations to increase voltage so the load can be transmitted in an efficient way.
  • Power Transformers: Installed in substations to handle high voltages above 200 MVA.
  • Distribution Transformers: Step down voltage for local or household use.
  • Current & Potential Transformers: Enable safe monitoring and control of high-voltage circuits

Transformer Type

Function

Location/Use Case

Step-Up Transformer

Increase voltage for transmission

Power Generation Plants

Power Transformer

Handle bulk transmission load

Substations and Grid Infrastructure

Distribution Transformer

Deliver electricity to end-users

Residential & Commercial Areas

CT & PT Transformers

Provide data for metering & protection systems

Control Rooms and Substations

These applications help the power industry to have a stable grid, lose less power and deliver reliable electricity across different regions.

Manufacturing & Industrial Applications

Transformers are needed in industries where machinery, furnaces and control systems are constantly in operation. They supply proper voltage levels and safety isolation.

Transformer applications in manufacturing include:

  • Furnace Transformers: Powering arc furnaces and induction heaters.
  • Control Transformers: Providing consistent voltage to control panels.
  • Auto Transformers: Efficiently handling low-voltage operations like motor starting.

Industries such as steel, cement, textiles, and chemicals depend on transformers to protect machines, maintain power quality, and ensure safety during operations.

Use Case

FuncTransformer Usedtion

Benefits

Welding Machines

Control Transformer

Steady voltage for smooth operation

Induction Heating

Furnace Transformer

High current, stable performance

Conveyor Belt Motors

Auto Transformer

Compact, cost-efficient solution

In high-load environments, even a small power fluctuation can lead to machinery failure. That’s where the right transformer becomes essential.

Electronics & Communication

In electronics and telecommunication, transformers play a different but equally critical role. The focus here is on precision, safety, and miniaturization.

Transformers in this space are designed for signal integrity, electromagnetic shielding, and voltage regulation for sensitive components.

Key Transformer Types Used

Application Area

Transformer Used

Functionality

Smartphone Chargers

Ferrite Core Transformer

Converts AC to low-voltage DC

Telecom Signal Boosters

Pulse Transformer

Ensures clear signal transmission

Medical Devices

Isolation Transformer

Protects from electrical interference

Compact and efficient transformers are in increasingly higher demand, particularly in wearables, IoT and telecom towers.

Mangal’s Expertise in Transformer Components & Power Solutions

When it comes to transformer technology and component manufacturing, Mangal is a trusted name known for its innovation, technical strength, and customer-focused approach. Backed by certifications such as ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018, the company offers end-to-end solutions for the power infrastructure sector, from design and production to turnkey EPC services.

Here’s what sets Mangal apart:

Product Range

  • Transformers from 5 KVA single-phase to 10 MVA three-phase units
  • Slit coils ranging from 40 mm to 1250 mm
  • Core and coil assemblies up to 20 MVA

Custom Solutions

  • Tailored transformer solutions for client-specific applications.

Component Manufacturing

  • Experts in CRGO slit coils, cut laminations, wound cores, core assemblies, amorphous cores, and oil-immersed circuit breakers.

Testing & Compliance

  • In-house testing lab equipped with German Brockhaus Messtechnik systems
  • Aligned with ISO 3024:2015, IEC, and ASTM standards for precision, safety, and reliability

EPC Services

  • Turnkey services for setting up substations and power infrastructure.

Whether it's for the power grid or precision electronics, Mangal ensures that its components and complete transformer units deliver durability, efficiency, and industry-grade reliability.

Conclusion

Transformers are integral to modern life, allowing electricity to reach us safely, efficiently and in the desired form. We've explored how various transformer types cater to different sectors such as power, industry, and electronics. Each sector relies on a specific application of a transformer, with tailored construction and performance characteristics to suit its needs

Choosing the right transformer not only improves system efficiency but also extends the life of equipment, reduces costs, and ensures operational safety. And with companies like Mangal offering high-quality, certified transformer components and turnkey services, industries have reliable partners to build robust power infrastructures.

FAQs

1. What is the difference between a step-up and step-down transformer?
A step-up transformer increases voltage from the primary to the secondary coil, mainly used in power plants for transmission. A step-down transformer decreases voltage for safe residential or commercial use.
2. How does a core-type transformer differ from a shell-type transformer?
In a core-type transformer, windings are placed around the core limbs. In contrast, shell-type transformers have the core wrapped around the windings, offering better strength and compactness.
3. What is a CT and PT transformer?
CT (Current Transformer) steps down high currents for metering or protection. PT (Potential Transformer) reduces high voltage to a measurable level. Both are instrument transformers used for safe monitoring in electrical systems.
4. What is the principle of a transformer?
A transformer works on the principle of electromagnetic induction. Alternating current in the primary coil creates a magnetic field, which induces a voltage in the secondary coil without any physical contact.
5. What are the advantages of using dry-type transformers?
Dry-type transformers use air for cooling, making them safer for indoor use. They’re low-maintenance, eco-friendly, and ideal for environments like malls, schools, and hospitals where oil-based cooling could pose risks.
