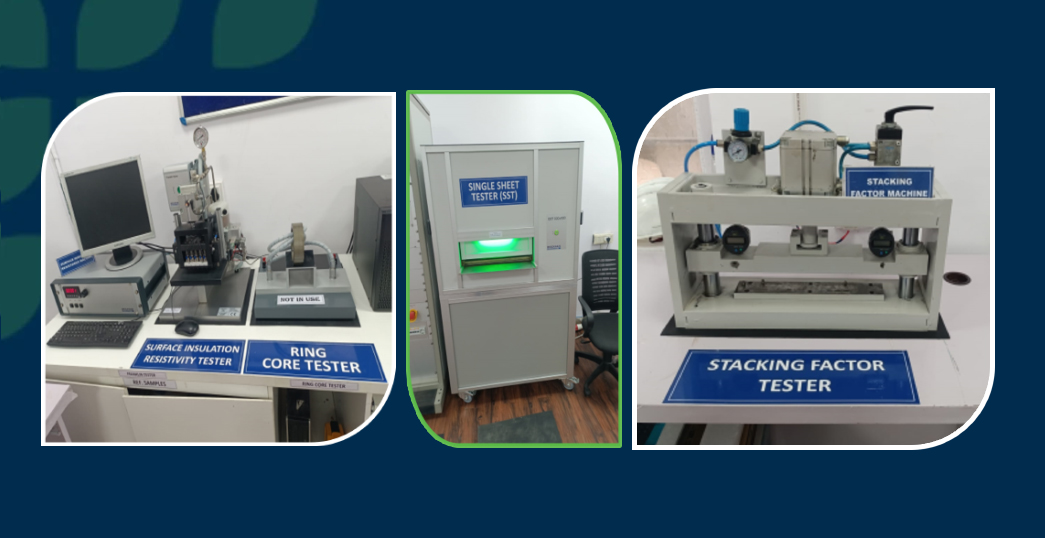

Common Transformer Testing Methods Explained

Ensuring the safety and reliability of electrical equipment is a very important aspect of transformer testing. Be it in manufacturing, commissioning or preventive maintenance, these tests are required to detect defects, assess the insulation integrity and verify the design parameters. This blog will highlight the different conventional transformer testing methods along with the role they play in different operational phases

What is Transformer Testing?

Transformer testing is a methodical examination of the electrical and physical properties of the transformer to evaluate if they are unaffected, effective, and satisfy the standards for safety. This confirms that the transformer is fit for service within certain clearly defined parameters.

Key Aspects of Transformer Testing

Parameter	Description
Electrical tests	Evaluate current, voltage, and insulation
Mechanical checks	Assess physical integrity
Thermal performance	Test for overheating or loss
Acoustic checks	Check operational noise levels

The answer to the query ‘what is transformer testing,’ is that it is an essential activity to identify individual transformer defects, test basic operational parameters (indicators of health) before (and sometimes during) use. The process will change depending on whether you are dealing with manufacturing, site installation, or post-installation health checks.

What are the Different Transformer Testing Types?

There are different types of transformer testing and it depends on where the test is conducted or the objective of the test. These include factory-based testing during manufacturing and site-based testing during commissioning.

Factory Testing

Test Type	Purpose
Type Tests	Validate design parameters under defined standards
Routine Tests	Performed on every unit to confirm performance before dispatch
Special Tests	Optional tests based on customer or regulatory requirements

Site Testing

Test Type	Purpose
Pre-Commissioning Tests	Conducted after installation but before energizing
Periodic/Condition	Monitoring Tests Ensure continued safe operation over time
Emergency Tests	Identify the root cause after faults or unexpected shutdowns

These transformer testing types are selected based on the transformer's operational stage and the specific concerns being addressed.

Type Test of Transformer

Type tests are standardised procedures performed to verify the design and functional integrity of a transformer. These are not repeated for every unit but are essential during prototype or sample testing.

Voltage Rating	Resistance Range
Low Voltage	0.1 – 1.0 ohm
High Voltage	1 – 100 ohms

Dielectric Tests

This verifies the insulation strength between various parts under high voltage.

Test Types

Dielectric	Test Purpose
Lightning Impulse Test	Tests transient high-voltage surges
Power Frequency Withstand	Verifies long-term voltage capability

Sound Level Measurement

Sound levels are measured to assess noise pollution and mechanical vibrations.

• The transformer is energized under no-load.
• Sound levels are recorded using calibrated microphones at a defined distance and angle.

Rated Power (MVA)	Acceptable Noise Level (dB)
Up to 50	55–65
Above 50	65–75

Measurement of No-Load Losses and Current

This test determines iron losses and magnetising current.

Parameter	Ideal Range (% of rated)
No-Load Loss	0.5–1%
No-Load Current	2%

Insulation Resistance Test

Assesses the condition of insulation between windings and earth.

Procedure

• Use a megohmmeter to apply DC voltage (usually 500V–5kV).
• Measure resistance over time (1 minute typically).

Rating (kV)	Min. IR Value (MΩ)
≤ 11 kV >	1,000
33 kV	> 2,000

Temperature Rise Test

This simulates real load conditions to assess heat dissipation and insulation aging.

Procedure

• 1. Load the transformer to rated capacity.
• Monitor oil and winding temperatures.
• Continue until the temperature stabilizes.

Component	Max. Temperature (°C)
Top Oil	60–65
Winding Hot Spot	80–98

Partial Discharge Test

This detects microscopic insulation failures before they develop into full faults.

Procedure

• Apply test voltage in a controlled setup.
• Measure discharge in picocoulombs (pC).

Acceptable PD Level is < 10 pC (for most power transformers). Partial discharge tests are crucial for high-voltage transformers and help prevent catastrophic failures.

Impulse Voltage Withstand Test

This simulates lightning or switching surges.

Procedure

• Supply a number of +ve and -ve high-voltage impulses (usually 5–7 shots).
• Monitor transformer insulation for damage or flashover

Test Impulse Type	Typical Voltage (kV)
Lightning Impulse	1050 – 1200 kV

A proper understanding of transformer testing techniques helps to avoid electrical failures, increase asset lifespan, and comply with international standards. Each testing phase plays an important role, from type tests for design verification to site-based inspections for ongoing reliability.

Routine Tests of Transformer

Routine tests are the fundamental transformer testing methods conducted on every transformer unit before it leaves the factory floor. These tests are important to verify that the transformer is built as per the design specified. This enables them to work properly in real-world applications. They are standardised, non-destructive, and critical to product validation and customer assurance.

Let’s explore the major routine tests involved in the transformer testing process:

Winding Resistance Test

This test measures the resistance of each winding phase. It helps identify poor connections, broken strands, or mismatched windings.

Insulation Resistance Test

It verifies the integrity of the insulation between winding and earth and between windings.

Turn’s Ratio Test

The turn’s ratio test is vital for confirming that the voltage ratio between the primary and secondary windings matches design specifications

Procedure

• Connect a test voltage to one winding.
• Measure the induced voltage in the other.
• Calculate the ratio and compare it to the rated value.

Winding Type	Typical Ratio Deviation
HV/LV (Up to 33 kV)	±0.5%
EHV Transformers	±0.25%

Why It's Critical

• Confirms design integrity
• Identifies winding short circuits
• Ensures phase accuracy

Dielectric Tests

They test the insulation system’s capacity to withstand high voltages under both lightning and operational conditions.

Polarity and Phase Relation Tests

Transformers in multi-unit systems must have correct polarity and phase sequence for proper parallel operation. This test verifies that requirement.

Procedure

• Energize the primary winding with a known voltage.
• Check secondary winding voltage for correct polarity using voltmeters or phase sequence indicators

Configuration	Test Output
Dyn11	30° Lag
YNd1	30° Lead

Purpose

• Ensures phase synchronisation
• Prevents phase opposition in interconnected systems

Temperature Rise Test

This test simulates full-load conditions to check thermal performance and the efficiency of the cooling system.

Short Circuit Withstand Test

This routine test evaluates the transformer’s ability to handle mechanical and thermal stresses arising from sudden short circuits.

Procedure

• A high fault current is injected to simulate a short-circuit.
• Physical parameters like temperature, sound, and pressure are monitored.

Standard Fault Duration	Typical Value
IEC 60076	2 seconds

Key Observations

• Mechanical deformation of windings
• Core shifting
• Integrity of insulation and clamping structures

Transformer Oil Test

Insulating oil used in the transformer has coolant and insulator properties. This test verifies the quality and purity of transformer oil, which is necessary for preventing electrical breakdown of transformers.

Oil Parameters Tested

• Breakdown Voltage (BDV)
• Moisture Content (PPM)
• Acidity (mg KOH/g)
• Interfacial Tension
• Colour and Visual Appearance

Parameter	Desired Value
BDV	> 60 kV (for new oil)
Moisture	< 35 PPM
Acidity	< 0.03 mg KOH/g
Appearance	Clear, Pale Yellow

Why It Matters

• High moisture or low BDV leads to insulation failure
• Helps predict oil ageing and contamination
• Enhances overall transformer reliability

Special Tests of Transformer

Let’s explore the main transformer testing types under the special category:

Partial Discharge Measurement

It is a sensitive and advanced test used to detect internal insulation weaknesses.

Sweep Frequency Response Analysis (SFRA)

SFRA is a modern diagnostic tool that helps identify mechanical movement or deformation in transformer windings and magnetic cores.

Procedure

• Inject a low-voltage sweep signal across the windings.
• Record the output voltage and compare it with a known reference (from the factory or previous tests).

Common Abnormalities Detected

• Winding displacement
• Core movement
• Shorted turns
• Loosened clamping

Type of Shift	Frequency Affected
Core Movement	Low Frequency Range
Inter-turn Short Circuit	Mid to High Frequency
Winding Collapse	Broadband Deviation

Why It’s Valuable

• Completely non-invasive
• Essential for post-transport inspection
• Can be performed without oil draining

Dissolved Gas Analysis (DGA)

DGA is one of the most informative transformer testing methods for diagnosing incipient faults inside the transformer.

How It Works

• Gases are generated inside the transformer due to thermal, electrical, or chemical faults.
• Oil samples are extracted and analysed using gas chromatography.

Key Gases & Their Indications

Gas	Indication
Hydrogen	Partial discharge
Acetylene	Arcing
Methane	Low energy overheating
Ethylene	High energy overheating
CO/CO₂	Cellulose insulation decay

Value

• Early fault detection before catastrophic failure
• Guides predictive maintenance scheduling
• Industry-accepted method for transformer health checks

Acoustic Noise Level Measurement

Noise is more than a nuisance; it’s a health check. Excessive sound levels could indicate mechanical vibration, magnetic core looseness, or winding deformation.

Procedure

• Energize the transformer at rated voltage.
• Use sound meters positioned 1 metre away to record average and peak noise levels.

Transformer Size	Acceptable dB Range
≤ 5 MVA	55–65 dB
> 5 MVA	65–75 dB

Purpose

• Compliance with environmental noise regulations
• Early identification of mechanical defects

On-load Tap Changer (OLTC) Testing

The OLTC allows voltage regulation under load, and its failure can lead to voltage instability in the system.

Tests Conducted

• Contact Resistance Measurement: Ensures low and uniform contact resistance across taps
• Dynamic Resistance Measurement (DRM): Assesses moving contact behaviour
• Timing Test: Verifies switching time and mechanical synchronisation

Parameter	Acceptable Values
Contact Resistance	Consistent across all taps
Switching Time	As per the manufacturer specs
Arc Suppression	Timing No excessive delay

Why It Matters

• Prevents voltage fluctuations
• Ensures smoother load transitions
• Avoids sparking and carbon buildup

Pre-Commissioning Test of Transformer

Before energising a newly installed transformer, a number of pre-commissioning tests are done. This ensures safety and functional reliability. With the help of these tests, you can verify that the transformer has not been damaged during transportation or assembly.

Key Tests Include

• Visual Inspection: Check for oil leakage, rust, or transportation damage
• Winding Resistance and IR Test: Ensures electrical integrity
• Turn Ratio and Vector Group Tests: Verifies design compliance
• Oil BDV and Level Check: Ensures the dielectric strength of insulating oil

Test	Objective
Ratio Test	Voltage ratio verification
IR Test	Insulation health check
Oil Test	Dielectric strength confirmation

These tests are crucial to safely commissioning transformers and are part of all standard transformer testing methods.

Transformer Testing Process

Transformer testing is a systematic methodology that guarantees that every transformer performs safely and efficiently throughout its operational life. This comprises a mix of physical inspections, electrical evaluations, and diagnostic testing from factory manufacturing floors to remote installation sites.

Preparation

The testing process begins with thorough preparation, which sets the stage for accurate and efficient testing. This phase ensures that the transformer and all associated instruments are ready for the tests to follow

Key Preparatory Activities

• Verify transformer documentation (ratings, design specs)
• Inspect weather/environmental conditions
• Calibrate instruments and safety devices
• Ensure the transformer is de-energised and grounded
• Identify and mark test points

Checklist Item	Purpose
Instrument Calibration	Ensures measurement accuracy
Earthing and Lockout Procedures	Enhances safety
Test Setup Verification	Prevents test failure or delays

Without careful preparation, even the most advanced tests can yield inaccurate or misleading results.

Visual Inspection

Visual inspection is the simplest yet one of the most revealing parts of the transformer testing process. It helps detect physical or installation defects that may compromise performance.

What to Inspect

• Oil levels and leaks
• Rust, corrosion, or external damage
• Condition of bushings, gaskets, and terminals
• Oil temperature and pressure indicators
• Proper labelling and earthing

Component	Potential Issues Detected
Oil Conservator	Low oil level or leakage
Bushings	Cracks or dirt accumulation
Nameplate	Incorrect or missing specification

Identifying visual defects early prevents serious operational failures down the line.

Electrical Testing

This step includes core electrical transformer testing methods to evaluate the functional integrity of windings, insulation, and voltage characteristics.

Tests Typically Performed

• Insulation Resistance (IR) Test
• Turns Ratio Test
• Winding Resistance Test
• Polarity and Vector Group Test
• Dielectric Withstand Test

Test Name	Purpose
Turns Ratio Test	Verifies voltage transformation
IR Test	Evaluates insulation health
Dielectric Test	Checks the breakdown voltage capacity

These are essential for both commissioning and routine maintenance.

Specialised Diagnostics

In addition to standard tests, specialised diagnostics help uncover latent defects or performance issues not evident in basic tests. These diagnostics are especially useful for critical transformers.

Advanced Techniques Include

• Sweep Frequency Response Analysis (SFRA)
• Dissolved Gas Analysis (DGA)
• Frequency Domain Spectroscopy
• Partial Discharge Detection
• Thermal Imaging (IR Thermography)

SFRA	Mechanical deformation of windings
DGA	Incipient fault detection via gases
IR Thermography	Identifies hotspot area

These tests provide a deeper understanding of internal health and aging

Analysis and Reporting

The final step of the transformer testing process is compiling, analysing, and interpreting the data to make informed decisions.

What It Involves

• Reviewing all measured values against design/specification limits
• Generating comparison charts (e.g., before and after testing)
• Summarising anomalies and their criticality
• Recommending corrective actions, repairs, or further testing
• Archiving results for future trend analysis

Purpose	Report Element
Test Summary Table	Quick comparison of all results
Fault Diagnosis	Pinpoints issues and root causes
Recommendation Section	Actionable next steps

Good reporting is not just documentation; it’s the blueprint for future maintenance and reliability planning.

Importance of Transformer Testing

Transformer testing is more than a technical routine—it is a proactive strategy for ensuring asset longevity, system reliability, and operational safety. Regular testing, whether at the manufacturing stage or during field inspections, provides a wealth of insights that translate into long-term value.

Benefit	Description
Fault Prevention	Prevents damage from unnoticed internal issues
Budget-Friendly Maintenance	Enables predictive over reactive repair planning
Energy Efficiency	Ensures minimal energy losses during operation
Legal and Safety Compliance	Mandatory for utilities and mission-critical systems

In a power system, a transformer is not just a component—it’s the heart of energy transmission. The importance of transformer testing lies in safeguarding this heart, ensuring uninterrupted power supply, safety of personnel, and financial prudence.

Conclusion

Conclusion Transformer testing is no longer a technical exercise. It is also a cornerstone of reliability, operational safety, and long-term performance of the power system. From minor insulation failures to confirming the integrity of windings, these tests make a collective health screening of your transformer. A well-tested transformer wastes less energy, completely minimizes extensive danger, and integrates properly into larger electric networks.

Professional testing of transformers is the execution of assessment procedures in a regulated manner, facilitating the reading and analysis in a meticulous manner, which is why industrial plants, utilities, and infrastructure projects rely on professional transformer testing services. Another important part of preventive maintenance is routine scheduled diagnostic checks to determine early indications of wear, stress, or inefficiencies. However, transformers are assets, and their performance, to a very large extent, is dictated by how well they are monitored and maintained through their lifetime
